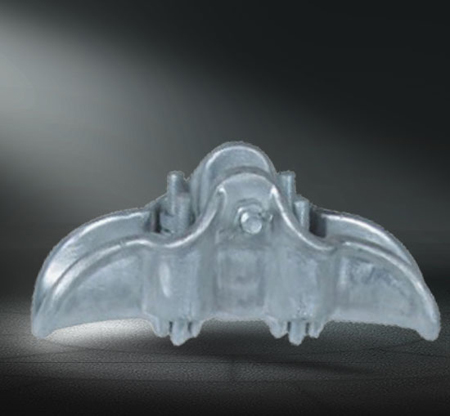

Suspension clamps are used to connect the conductors to the insulators.The product range comprises products for all purposes. Some of the types have heliformed rods already integrated, whereas others can be used withor without such rods.
Besides the standard designs special slipping clamps, which allow slipping between two defined values, are available.
| Catalog No. |
Applicable Conductor(mm) |
Dimensions(mm) | Rated Failure load(kN) |
Weight (kg) |
||||
| H | C | M | R | L | ||||
| XGH-2 | 5.1-12.5 | 52.5 | 25 | 16 | 8 | 166 | 40 | 1 |
| XGH-3 | 12.4-17.0 | 50.5 | 24 | 16 | 11.5 | 200 | 40 | 1.5 |
| XGH-3A | 12.4-17.0 | 50 | 22 | 16 | 10 | 180 | 50 | 1.5 |
| XGH-4 | 19.0-23.5 | 59.5 | 27 | 16 | 13.5 | 225 | 40 | 2.3 |
| XGH-5 | 24.2-28.0 | 70 | 32 | 16 | 16 | 260 | 60 | 4.4 |
The clamp boady and keepers are aluminium alloy,cotter-pin is stainless steel.the other parts
are hot-dip galvanizde steel.
