Description:

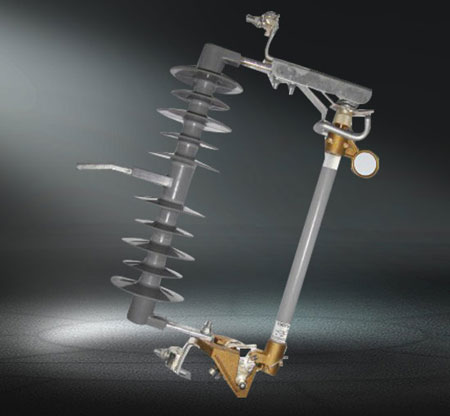

Fuse cutout is suitable for high voltage distribution lines and transformers, acting as an overload protector and a device for opening and closing load current. All the metal parts of the fuse cutout are free from erosion and rust. The fuse cutout is developed to fit common service conditions and applications and it has passed the type test.
Features:
1. Secure over-current protection.
2. High mechanical strength.
3. Advanced design of fuse tube.
4. Easy for installation.
Specifications
10KV/15KV -110KV BIL
|
Type
|
Rated Voltage（kV） | Rated Current（A） | Breaking Current（A） | Impulse Current（kV BIL） | Power Frequency Withstand Voltage（kV） | Leakage Distance（MM） | Weight (kG) | Dimension (CM) |
| HKUC-1501 | 15 | 100 | 10 | 110 | 45 | 250 | 6.8 | 38.5*34.5*11 |
| HKUC-1502 | 15 | 200 | 12 | 110 | 45 | 250 | 7.3 | 38.5*34.5*11 |
| HKUC-1503 | 15 | 300 | 12 | 110 | 45 | 250 | 8.5 | 38.5*34.5*11 |
15KV/27KV -125KV BIL
|
Type
|
Rated Voltage（kV） | Rated Current（A） | Breaking Current（A） | Impulse Current（kV BIL） | Power Frequency Withstand Voltage（kV） | Leakage Distance（MM） | Weight (kG) | Dimension (CM) |
| HKUC-1511 | 15 | 100 | 10 | 125 | 45 | 350 | 8.8 | 50*33.5 *12 |
| HKUC-1512 | 15 | 200 | 12 | 125 | 45 | 350 | 9.3 | 50*33.5 *12 |
| HKUC-1513 | 15 | 300 | 12 | 125 | 45 | 350 | 10.5 | 50*33.5 *12 |
15KV/27KV -150KV BIL
|
Type
|
Rated Voltage（kV） | Rated Current（A） | Breaking Current（A） | Impulse Current（kV BIL） | Power Frequency Withstand Voltage（kV） | Leakage Distance（MM） | Weight (kG) | Dimension (CM) |
| HKUC-2701 | 27 | 100 | 8 | 150 | 65 | 540 | 8.8 | 51*32.5 *16.5 |
| HKUC-2702 | 27 | 200 | 10 | 150 | 65 | 540 | 9.3 | 51*32.5 *16.5 |
| HKUC-2703 | 27 | 300 | 12 | 150 | 65 | 540 | 10.5 | 51*32.5 *16.5 |
33KV/36KV -170KV BIL
|
Type
|
Rated Voltage（kV） | Rated Current（A） | Breaking Current（A） | Impulse Current（kV BIL） | Power Frequency Withstand Voltage（kV） | Leakage Distance（MM） | Weight (kG) | Dimension (CM) |
| HKUC-3601 | 36 | 100 | 10 | 170 | 70 | 660 | 13.5 | 54*41 *16.5 |
| HKUC-3602 | 36 | 200 | 12 | 170 | 70 | 660 | 14.5 | 54*41 *16.5 |
| HKUC-3603 | 36 | 300 | 12 | 170 | 70 | 660 | 15.5 | 54*41 *16.5 |
33KV/36KV -170KV BIL
|
Type
|
Rated Voltage（kV） | Rated Current（A） | Breaking Current（A） | Impulse Current（kV BIL） | Power Frequency Withstand Voltage（kV） | Leakage Distance（MM） | Weight (kG) | Dimension (CM) |
| HKUC-3611 | 36 | 100 | 10 | 170 | 70 | 720 | 14.2 | 56*42 *16.5 |
| HKUC-3612 | 36 | 200 | 12 | 170 | 70 | 720 | 15 | 56*42 *16.5 |
| HKUC-3613 | 36 | 300 | 12 | 170 | 70 | 720 | 16.5 | 56*42 *16.5 |
