Suspension Clamp

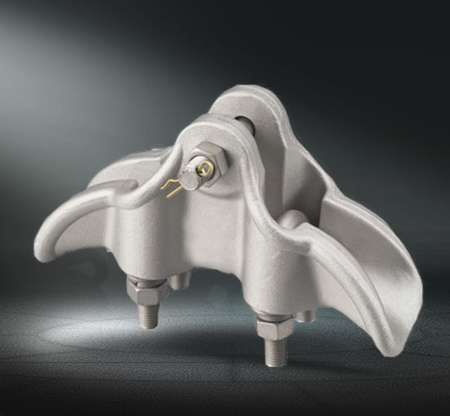

CGH Aluminum Alloy Suspension Clamps(Envelope Type)

CGH Aluminum Alloy Suspension Clamps(Envelope Type)

  • CGH Aluminum Alloy Suspension Clamps(Envelope Type)

Online Service:

Suspension clamps are used to connect the conductors to the insulators.The product range comprises products for all purposes. Some of the types have heliformed rods already integrated, whereas others can be used withor without such rods.
Besides the standard designs special slipping clamps, which allow slipping between two defined values, are available.

Catalog
No.
Applicable
Conductor(mm)
Dimensions
(mm)
Rated Failure load(kN) Weight
(kg)
Catalog
No.
H L R C M
CGH-2 / Φ5.0~12.4 50 146 9 19 16 40 1.1
CGH-3 HS-220 Φ12.4~17 50 200 11 22 16 40 1.4
CGH-4 HS-280 Φ19~21.5 60 220 12 27 16 40 1.9
CGH-5 HS-330 HS-370 Φ24.2~33 65 250 18 37 16 70 2.5
CGH-6 HS-480 Φ34.0~45.0 67 300 23 48 16 70 3.2
